Frequently Asked Questions: ShoreStation’s Sectional Dock

Below are answers to some common questions about the ShoreStation sectional dock product.

4' sections are 50.5" x 95". 6' sections are 68.5" x 95". 8' dock sections are 92.5" x 95".

The standard combination of leg frames and adjustable leg extensions can be used to reach water depths up to 147" (12' 3").

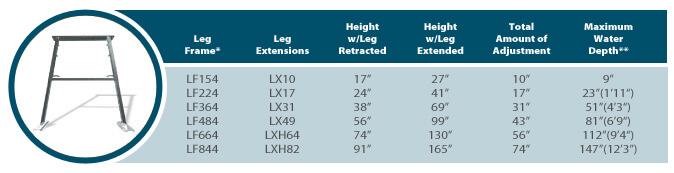

ShoreStation’s Seasonal Dock Water Depths

A Table of Classic Seasonal Dock Water Depths

* Leg Frames are also available in 6' and 8' wide sections. | ** Maximum water depth is based on 18" from the top of the dock to the water line. Some lake conditions may require additional clearance.

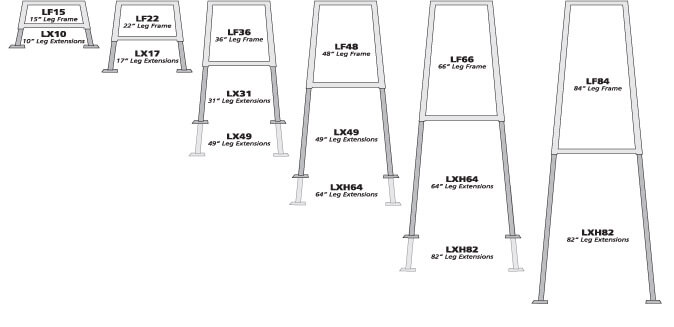

We offer six different sizes: 15", 22", 36", 48", 66" and 84". The same frames are used with both Stationary and Rolling Dock systems.

Leg Frame Size Chart

These leg frames are combined with our adjustable leg extensions to conform with the natural slope of the lakebed. They are available in two different styles – LX for Stationary Dock (pictured) and LXR for Rolling Dock.

Leg Extension Lock img

Leg Extension Lock

This optional bracket keeps the leg locked at the proper height and prevents it from extending during rough weather.

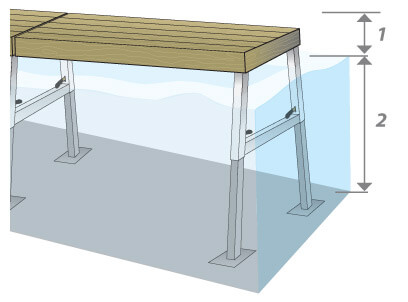

Water line

1) Dock to Water Line - is measured from the top of the dock to the top of the water. A minimum of 18" is recommended. In many cases, more than 18" is required to accommodate rough waves and other conditions. Your dealer can help you select the proper dock height for your lake conditions.

2) Water Depth - is measured from the water line to lake bed.

The Aqua Step is 30" wide and the Shore Steps are 48" wide.

ShoreStation uses "Transparent Natural Cedar." It is available through your ShoreStation dealer in gallons as item #4040132.
